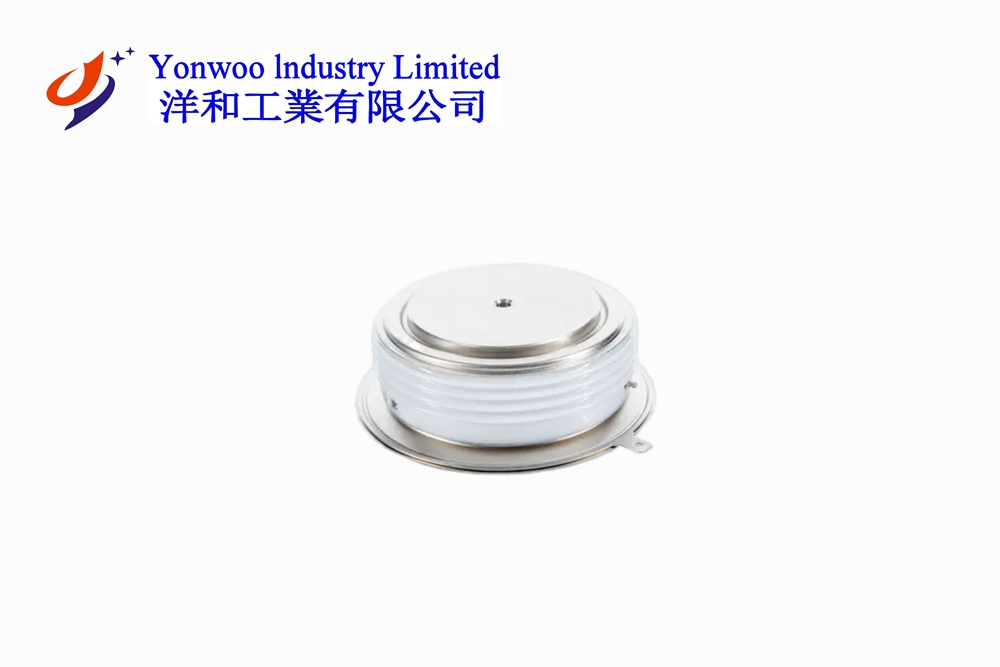

Fast Switch Thyristor

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

IT(AV) A	TC ℃	VDRM/VRRM V	ITSM @TVJIM&10ms A	I2t A2s	VTM @IT&TJ=25℃ V / A		tq μs	Tjm ℃	Rjc ℃/W	Rc-s ℃/W	F KN	m Kg
200	55	1200~1400	2800	3.9x104	2.20	640	20	125	0.0600	0.0100	10	0.08
500	55	1200~1400	7500	2.8x105	2.00	1570	20	125	0.0390	0.0080	15	0.26
800	55	1200~1400	12000	7.2x105	2.00	2400	20	125	0.0300	0.0060	20	0.33
1000	55	1200~1400	15000	1.1x106	2.00	3000	20	125	0.0220	0.0050	25	0.46
1200	55	1200~1400	18000	1.6x106	2.00	3000	20	125	0.0200	0.0050	27	0.5
1500	55	1200~1400	22500	2.5x106	1.90	3000	20	125	0.0160	0.0045	28	0.65
1800	55	1200~1400	25200	3.2x106	1.90	3000	20	125	0.0150	0.0045	30	0.72
2400	55	1200~1400	33600	5.6x106	1.70	3000	22	125	0.0120	0.0040	33	0.72
3000	55	1200~1400	42000	8.8x106	1.60	3000	22	125	0.0100	0.0030	35	0.72
500	55	1600~2000	7000	2.5x105	2.50	1570	30	125	0.0390	0.0080	15	0.26
800	55	1600~2000	11200	6.3x105	2.60	2400	30	125	0.0300	0.0060	20	0.33
1000	55	1600~2000	14000	9.8x105	2.40	3000	30	125	0.0220	0.0050	25	0.46
1200	55	1600~2000	16800	1.4x106	2.30	3000	30	125	0.0200	0.0050	27	0.5
1500	55	1600~2000	21000	2.2x106	2.20	3000	30	125	0.0160	0.0050	28	0.65
1800	55	1600~2000	25200	3.2x106	2.10	3000	35	125	0.0150	0.0045	30	0.72
2000	55	1600~2000	28000	3.9x106	2.00	3000	35	125	0.0125	0.0040	33	0.85
2700	55	1600~2000	37800	7.1x106	1.90	3000	40	125	0.0100	0.0030	35	1.1
3600	55	1600~2000	50400	12.5x106	1.40	3000	40	125	0.0080	0.0020	60	1.3
1000	55	2500~3000	12000	7.2x105	2.90	3000	55	125	0.0220	0.0050	25	0.46
1200	55	2500~3000	14400	1.0x106	2.80	3001	55	125	0.0200	0.0050	27	0.5
1500	55	2500~3000	18500	1.7x106	2.70	3002	60	125	0.0160	0.0050	28	0.65
1800	55	2500~3000	21600	2.3x106	2.60	3003	60	125	0.0150	0.0045	30	0.72
2000	55	2500~3000	24000	2.9x106	2.40	3004	60	125	0.0125	0.0040	33	0.85
2500	55	2500~3000	30000	4.5x106	2.20	3005	60	125	0.0100	0.0030	35	1.1
3000	55	2500~3000	36000	6.5x106	1.90	3006	60	125	0.0080	0.0020	60	1.4
4000	55	2500~3000	48000	1.2x107	1.80	3007	60	125	0.0060	0.0015	80	1.9
1800	55	3200~3500	21600	2.3x106	2.90	3000	80	125	0.0100	0.0030	35	1.1
2500	55	3200~3500	30000	4.5x106	2.50	3000	80	125	0.0080	0.0020	60	1.4
3708	55	4500	50000	1.3x107	2.10	4000	250	125	0.0060	0.0015	80	1.9
